| Price | Negotiable |
| MOQ | 1 unit |
| Delivery Time | 2-3 days |
| Brand | Cisco |
| Place of Origin | China |
| Certification | CE |
| Model Number | SPA-1XOC48POS/RPR1 |
| Packaging Details | In original carton package |
| Payment Terms | T/T, Paypal, Western Union, L/C |
| Supply Ability | 25 units / months |
| Condition | NEW IN BOX (NIB), unused, unopened, brand new | Part Coder | SPA-1XOC48POS/RPR= |
| Place of Origin | China | Product compatibility | Cisco Catalyst 6500 Series Switches |
| Packaging Details | In original carton package | Network management | Host-system CLI |
| Model Number | SPA-1XOC48POS/RPR1 | Supply Ability | 25 units / months |
| Application: | Enterprise | Certification | CE |
| Brand Name | Cisco | Payment Terms | T/T, Paypal, Western Union, L/C |
| Brand | CISCO | Price | Negotiable |
| Delivery Time | 2-3 days | Minimum Order Quantity | 1 unit |
| Model | SPA-1XOC48POS/RPR1 |
Products Specifications:
The Cisco® Interface Flexibility (I-Flex) design combines shared port adapters (SPAs) and SPA interface processors (SIPs) to help enable service prioritization for voice, video, and data services. Enterprise and service provider customers can take advantage of improved slot economics resulting from modular port adapters that are interchangeable across Cisco routing platforms. The extensible Cisco I-Flex design maximizes connectivity options and offers superior service intelligence through programmable interface processors that deliver line-rate performance. Cisco I-Flex enhances speed-to-service revenue and provides a rich set of quality of service (QoS) features for premium service delivery while effectively reducing the overall cost of ownership. This data sheet contains the specifications for the Cisco 1-, 2-, and 4-Port OC-48c/STM-16c Packet over SONET/SDH (POS) and Resilient Packet Ring (RPR) Shared Port Adapter (Cisco 1-, 2-, and 4-Port OC-48c/STM-16c POS/RPR SPA; refer to Figure 1).
Product Overview

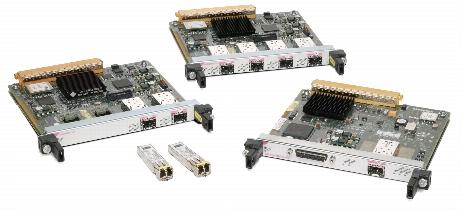

Figure 1. Cisco 2-Port OC-48c/STM-16c POS/RPR SPA with SFP Optics
Applications
• Access and aggregation
• WAN uplinks
• Internet peering

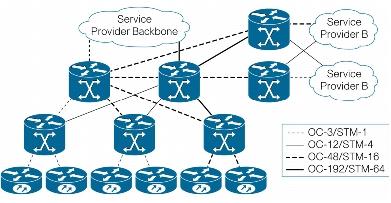

Figure 2. POS Applications

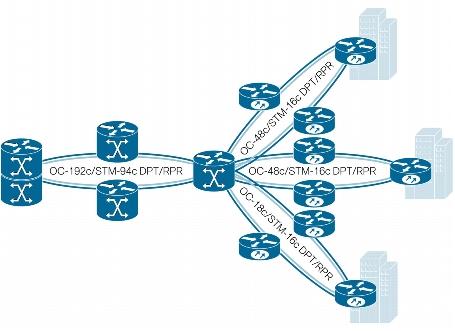

Figure 3. RPR Applications
Key Features and Benefits
• Industry-leading modular, flexible, intelligent interface processors
– Unmatched flexibility, allowing a combination of interface types on the same interface processor for consistent services, independent of access technology.
– Pioneering programmable interface processors that provide flexibility for the service diversity required in next-generation networks.
– Innovative design that provides intelligent delivery of services without compromising on performance.
• Increased speed-to-service revenue
– The scalable, programmable Cisco architecture extended to 2.5 Gbps dramatically improves customer density, increasing potential revenue per platform.
– Interface breadth (copper, channelized, POS, ATM, and Ethernet) on a modular interface processor allows service providers to more quickly roll out new services, ensuring all customers, large and small, receive consistent, secure, and guaranteed services.
– High-density SFP interfaces are featured for high-port-count applications with reach flexibility. Future optical technology improvements can be adopted using existing SPAs.
• Significant investment protection
– Improved slot economics and increased density reduce capital expenditures (CapEx).
– The ability to easily add new interfaces as they are needed facilitates a "pay-as-you-grow" business model while still offering a high-density solution.
– SPAs are shared across multiple platforms, and can be easily moved from one to another, providing consistent feature support, accelerated product delivery, and a significant reduction in operating expenses (OpEx) through common sparing as service needs change.
Product Specifications
Table 1. Product Specifications
|
Description |
Specification |
|
Product Compatibility |
Cisco Catalyst 6500 Series Switches Cisco 7600 Series Routers Cisco 12000 Series Routers Cisco XR 12000 Series Routers Cisco ASR 1000 Series Router Cisco ASR 9000 Series Router(2 port only) Cisco CRS Carrier Routing System(2 and 4 port only) |
|
Port Density per SPA |
1, 2, and 4 ports |
|
Physical Interface |
OC-48c/STM-16c SFP optics module (see optical parameters below) Visual status indicators (LEDs)
•
SPA
status
LED
•
Per
port
LEDs
•
Carrier/Alarm
•
Active/Loopback
•
Protect
(DPT/RPR
mode)
•
Pass
Through
(DPT/RPR
mode)
|
|
Protocols (see table below for RPR/SRP support info) |
High-Level Data Link Control (HDLC), RFC 2615 Point-to-Point Protocol (PPP), RFC 1662 Frame Relay, RFC 2427 IPv4/IPv6 IEEE 802.17 - Resilient Packet Ring (RPR) IETF 2892 - Spatial Reuse Protocol (SRP) |
|
Features and Functions |
Synchronization
•
Local
(internal)
or
loop
timed
(recovered
from
network)
•
Stratum
3
clock
accuracy
(±
4.6
ppm)
over
full
operating
temperature
•
Pointer
activity
monitoring
Local (diagnostic) and line (network) loopback Section DCC (SDCC) - Platform-dependent feature Payload mapping
•
1
+
X^43
self-synchronous
scrambler
SONET/SDH compliance
•
Telecordia
(Bellcore)
GR-253-CORE
(as
applicable)
•
ANSI
T1.105,
T1.231
•
ITU-T
G.707,
G.957,
G.825
(as
applicable)
Supported SONET/SDH alarm and signal events
•
Signal
Failure
Bit
Error
Rate
(SF-BER)
•
Signal
Degrade
Bit
Error
Rate
(SD-BER)
•
Signal
Label
Payload
Construction
(C2)
•
Path
Trace
Byte
(J1)
•
Section
•
Loss
of
Signal
(LOS)
•
Loss
of
Frame
(LOF)
•
Error
Counts
for
B1
•
Threshold
Crossing
Alarms
(TCA)
for
B1
•
Line
•
Line
Alarm
Indication
Signal
(LAIS)
•
Line
Remote
Defect
Indication
(LRDI)
•
Line
Remote
Error
Indication
(LREI)
•
Error
Counts
for
B2
•
Threshold
Crossing
Alarms
(TCA)
for
B2
•
Path
•
Path
Alarm
Indication
Signal
(PAIS)
•
Path
Remote
Defect
Indication
(PRDI)
•
Path
Remote
Error
Indication
(PREI)
•
Error
Counts
for
B3
•
Threshold
Crossing
Alarms
(TCA)
for
B3
•
Loss
of
Pointer
(LOP)
•
Positive
Stuffing
Event
(PSE)
•
Negative
Stuffing
Event
(NSE)
•
Path
Unequipped
Indication
Signal
(PUNEQ)
•
Path
Payload
Mismatch
Indication
Signal
(PPLM)
|
|
Network Management |
RFC 2558 MIB (SONET/SDH) Simple Network Management Protocol (SNMP) |
|
Reliability and Availability |
Online insertion and removal (OIR) Field-replaceable SFP optical modules 1+1 SONET Automatic Protection Switching (APS) and SDH Linear Multiplexer Section Protection (MSP) protocols Single SPA software reset |
|
Physical Specifications |
Weight: 0.75 lbs (0.34 kg) Height: 0.8 inches (2.03 cm) Width: 6.75 inches (17.15 cm) Depth: 7.28 inches (18.49 cm) |
|
Power |
18 Watts maximum (4-port) 15.5 Watts maximum (1-, 2-, and 4-Port) 12 Watts maximum (1-port) |
|
Environmental Specifications |
Operating temperature: 41° to 104°F (5° to 40°C) Storage temperature: -38° to 150°F (-40° to 70°C) Operating humidity: 5 to 85% relative humidity Storage humidity: 5 to 95% relative humidity |
|
Compliance and Agency Approvals |
Safety UL 60950 CSA 22.2-No.60950 EN60950 IEC 60950 CB Scheme ACA TS001 AS/NZS 3260 EN60825IEC60825 laser safety (SR, IR-Class 1) (VSR-Class 1M)1 21CFR1040 -FDA Code of Federal Regulations (USA) laser safety (SR, IR-Class 1) (VSR-Class 1M)1 EMC FCC Part 15 (CFR 47) ICES 003 EN55022 CISPR 22 AS/NZ 3548 VCCI EN55024 EN50082-1 EN61000-6-1 EN61000-3-2 EN61000-3-3 Network Equipment Building System (NEBS) This product is designed to meet the following requirements (official qualification may be in progress): SR-3580 - NEBS: criteria levels (Level 3 compliant) GR-63-Core - NEBS: physical protection GR-1089-Core - NEBS: EMC and safety European Telecommunications Standard Institute (ETSI) EN300 386/EN300 386-2 Class B ETS 300 019 Storage Class 1.1 ETS 300 019 Transportation Class 2.3 ETS 300 019 Stationary Use Class 3.1 |
Products Photo:
