| Price | Negotiable |
| MOQ | 50 |
| Delivery Time | 5-8 work days |
| Brand | KRONZ |
| Place of Origin | China |
| Model Number | H0803M-0 |
| Packaging Details | Polybag with paper box |
| Payment Terms | T/T,Western Union,MoneyGram |
| Supply Ability | 100000 pcs per month |
| Place of Origin | China | Mating cycles | >100 |
| Packaging Details | Polybag with paper box | Standard | IEC 61076-2-104 |
| Model Number | H0803M-0 | Supply Ability | 100000 pcs per month |
| Ambient Temperature | -25°C to +85°C | Brand Name | KRONZ |
| Payment Terms | T/T,Western Union,MoneyGram | Number Of Pins | 3 |
| Delivery Time | 5-8 work days | Minimum Order Quantity | 50 |
| Connector Type | M8 | Seal material | FPM/FKM |
| Contact nut material | Brass,nickle-plated | Ip Rating | IP67 |
| Standard | IEC 61076-2-104 |
| Contact nut material | Brass, nickle-plated |
| Seal material | FPM/FKM |
| Ambient Temperature | -25°C to +85°C |
| Mating cycles | >100 |
| Ip Rating | IP67 |
| Connector Type | M8 |
| Number Of Pins | 3 |

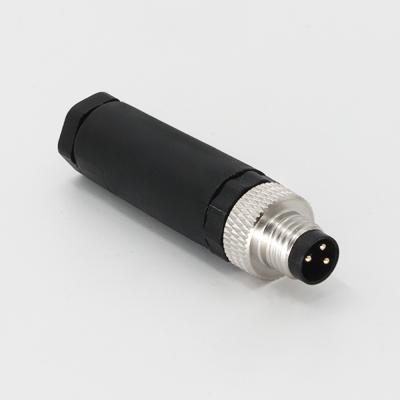

M8 Connector IEC 61076-2-104 Field-wireable Assembly Connector 3-pin A-coding Straight IP67 Male
This M8 male connector is designed for industrial automation applications, offering robust performance in harsh environments. It complies with IEC 61076-2-104 standards and features an A-coding (preventing mismating with B/D-coded variants). The IP67 rating ensures protection against dust, moisture, and temporary immersion, making it ideal for outdoor or wet conditions.
| Standard | IEC 61076-2-104 |
| Contact nut material | Brass, nickle-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | PA, black |
| Housing material | PBT/PA, black |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Pollution degree | 3 |
| Ambient temperature | -25~+85℃ |
| Mating cycles | >100 |
| Degree of protection | IP67 |
