M8 Male 4-Pin A-Coded Connector Screw Connection IP67


Price	Negotiable
MOQ	50 pieces
Delivery Time	5-8 working days
Brand	KRONZ
Place of Origin	Guangdong, China
Certification	CE
Model Number	H0804MV-0
Packaging Details	Polybag packing
Payment Terms	T/T,Western Union,MoneyGram
Supply Ability	100000 pieces per month

Product Details

Product Specification

Place of Origin	Guangdong, China	Packaging Details	Polybag packing
Product Name	M8 Metal Connector	Color	Siliver
Material	Brass,gold-plated	Model Number	H0804MV-0
Supply Ability	100000 pieces per month	Certification	CE
Ambient Temperature	-25~+85℃	Connection Method	Screw Connection
Brand Name	KRONZ	Payment Terms	T/T,Western Union,MoneyGram
Price	Negotiable	Delivery Time	5-8 working days
Minimum Order Quantity	50 pieces	IP rate	IP67
Contact Resistance	≤ 5mΩ

Product Description

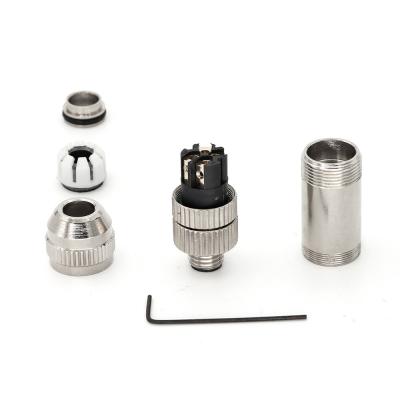

M8 Field-wirable Assembly Connector Straight Male 4 Pin A Code Full Metal

This M8 Straight Male Connector features a 4-pin A-coded interface and a rugged full-metal housing for superior mechanical strength and EMI shielding. Designed with a screw connection termination, it ensures secure, vibration-resistant wiring for demanding industrial environments.

Product Attributes

Attribute	Value
Material	Brass, gold-plated
Product Name	M8 Metal Connector
Color	Silver
IP rate	IP67
Contact Resistance	≤ 5mΩ
Ambient Temperature	-25~+85℃
Connection Method	Screw Connection

Key Features

Connector Type: M8 Male, 4-Pin, A-Coded
Orientation: Straight
Housing: Full metal for enhanced durability and shielding
Termination: Screw connection for easy field assembly
Applications: Industrial sensors, actuators, robotics, and automation systems
Standard Compliance: IEC 61076-2-104

Technical Parameters

Standard	IEC 61076-2-104
Contact nut material	Brass, nickel-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	Brass, nickel-plated
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67
