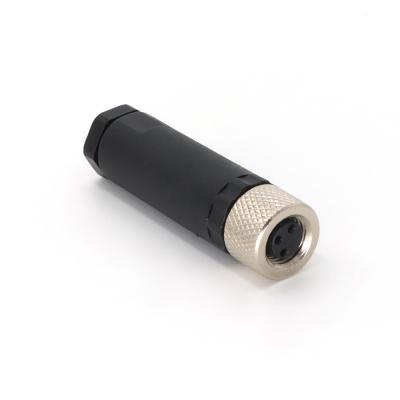

M8 4 Pin Female Field Wireable Connector IP67 IEC 61076-2-104


Price	Negotiable
MOQ	50 pieces
Delivery Time	5-8 working days
Brand	KRONZ
Place of Origin	Guangdong, China
Certification	CE
Model Number	H0804F-0
Packaging Details	Polybag packing
Payment Terms	T/T,Western Union,MoneyGram
Supply Ability	100000 pieces per month

Product Details

Product Specification

Place of Origin	Guangdong, China	Packaging Details	Polybag packing
Degree of protection	IP67	Model Number	H0804F-0
Supply Ability	100000 pieces per month	Certification	CE
Brand Name	KRONZ	Payment Terms	T/T,Western Union,MoneyGram
Price	Negotiable	Delivery Time	5-8 working days
Product name	M8 Field Wirable Assembly Connector	Ambient temperature	-25~+85℃
Minimum Order Quantity	50 pieces	Housing material	PBT/PA, black
Seal material	FPM/FKM	Insulation Resistance	≥ 100MΩ
Contact carrier material	PA, black	Contact nut material	Brass, nickle-plated

Product Description

4 Pin M8 Connector Female Field Wireable Waterproof IEC 61076-2-104

Product Specifications

Attribute	Value
Product name	M8 Field Wirable Assembly Connector
Contact nut material	Brass, nickle-plated
Contact carrier material	PA, black
Housing material	PBT/PA, black
Seal material	FPM/FKM
Insulation Resistance	≥ 100MΩ
Ambient temperature	-25~+85℃
Degree of protection	IP67

Product Description

The 4-Pin M8 Female Connector is a robust, field-wireable circular connector designed for reliable signal and data transmission in industrial automation, sensors, actuators, and control systems. Compliant with IEC 61076-2-104 standards, this compact connector ensures high-performance connectivity even in harsh environments.

Key Features

Connector Type: M8 circular connector
Pin Configuration: 4-pole (female)
Wiring Method: Field wireable / screw termination - no soldering required
Cable Diameter Range: Typically 4 - 6 mm (varies by model)
Rated Current: Up to 4A (depending on wire gauge)
Rated Voltage: Up to 60V AC/DC
Contact Material: Gold-plated brass or phosphor bronze
Insulation Resistance: ≥ 100 MΩ
Ingress Protection: IP67 or higher (dust-tight and water-resistant when mated)
Shell Material: Nickel-plated brass or PA (polyamide) for rugged durability
Operating Temperature: -25°C to +85°C (may vary slightly by model)
Standards Compliance: Fully compliant with IEC 61076-2-104

Product Images

4 Pin M8 Female Connector disassembled view

Technical Parameters

Standard	IEC 61076-2-104
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	PBT/PA, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67
