M12 4-Pin Field-Wireable Connector IP67 Screw Connection


Price	Negotiable
MOQ	5
Delivery Time	5-8 working days
Brand	KRONZ
Place of Origin	Guangdong, China
Certification	CE
Model Number	H1204FA-9/L
Packaging Details	Polybag packing
Payment Terms	T/T,Western Union,MoneyGram
Supply Ability	100000 pieces per month

Product Details

Product Specification

Cable outlet	Angle	Place of Origin	Guangdong, China
Packaging Details	Polybag packing	Connect	Screw Connection
Contact surface material	Brass, Gold-plated	Standard	IEC 61076-2-101
Insulation resistance	≥100MΩ	Model Number	H1204FA-9/L
Supply Ability	100000 pieces per month	Certification	CE
Brand Name	KRONZ	Payment Terms	T/T,Western Union,MoneyGram
Price	Negotiable	Delivery Time	5-8 working days
Minimum Order Quantity	5	Pollution degree	3
Cable Outlet Diameter	4-8mm	Contact nut material	Brass, Alloy

Product Description

M12 Field-Wireable Connector 4 Pin Screw Connection IP67

Product Attributes

Attribute	Value
Cable Outlet Diameter	4-8mm
Cable outlet	Angle
Pollution degree	3
Standard	IEC 61076-2-101
Insulation resistance	≥100MΩ
Connect	Screw Connection
Contact nut material	Brass, Alloy
Contact surface material	Brass, Gold-plated

Product Description

This Industrial M12 Field-Wireable Connector features a 4-pin configuration with low contact resistance ≤5mΩ, ensuring reliable signal integrity and minimal power loss. Designed for field installation, it supports cable diameters from 4 to 8mm, offering flexibility and robust performance in harsh industrial environments.

Key Features

Product Name: M12 Connector
Degree of protection: IP67
Pollution degree: 3
Contact resistance: ≤5mΩ
Voltage: 250V
Pin: 4

Technical Parameters

Contact resistance	≤5mΩ
Cable Outlet Diameter	4-8mm
Pin	4
Voltage	250V
Connect	Screw Connection
Pollution degree	3
Seal material	NBR
Coding	A
Contact nut material	Brass, Alloy
Housing material	TPU, Black

Product Images

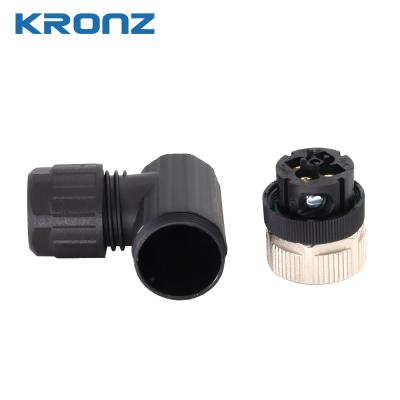

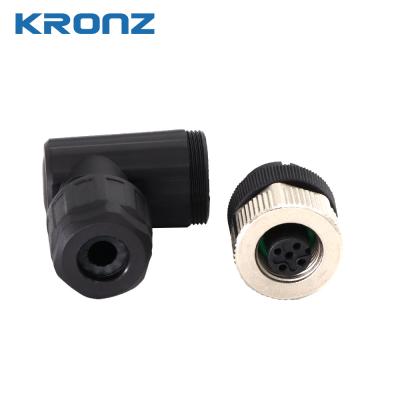

M12 Field-Wireable Connector angled view

Applications

KRONZ M12 connectors are versatile components suitable for industrial applications requiring reliable sensor and cable connections. The robust IP67-rated construction ensures performance in harsh environments with dust and moisture exposure. These connectors are ideal for:

Industrial automation systems
Sensor networks
Equipment requiring secure, durable connections
Environments with temperature ranges from -25°C to +85°C

Support and Services

Our technical support team provides comprehensive assistance with installation, troubleshooting, and product usage. Customers can access online resources including user manuals and technical documentation for additional support.
