| Price | Negotiable |
| MOQ | 5 |
| Delivery Time | 5-8 working days |
| Brand | KRONZ |
| Place of Origin | Guangdong, China |
| Certification | CE |
| Model Number | H1208FA-9/L |
| Packaging Details | Polybag packing |
| Payment Terms | T/T,Western Union,MoneyGram |
| Supply Ability | 100000 pieces per month |
| Place of Origin | Guangdong, China | Mating cycles | >100 |
| Packaging Details | Polybag packing | Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ | Degree of protection | IP67 |
| Standard | IEC 61076-2-101 | Gender | Female |
| Model Number | H1208FA-9/L | Supply Ability | 100000 pieces per month |
| Certification | CE | Brand Name | KRONZ |
| Payment Terms | T/T,Western Union,MoneyGram | Price | Negotiable |
| Delivery Time | 5-8 working days | Minimum Order Quantity | 5 |
| Housing material | TPU, Black | Contact carrier material | ABS, PA, Black |
| Attribute | Value |
|---|---|
| Insulation resistance | ≥100MΩ |
| Contact carrier material | ABS, PA, Black |
| Degree of protection | IP67 |
| Gender | Female |
| Mating cycles | >100 |
| Housing material | TPU, Black |
| Contact resistance | ≤5mΩ |
| Standard | IEC 61076-2-101 |

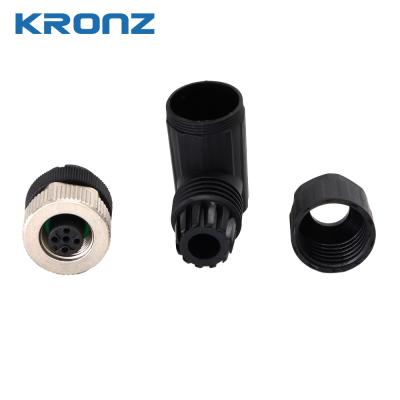

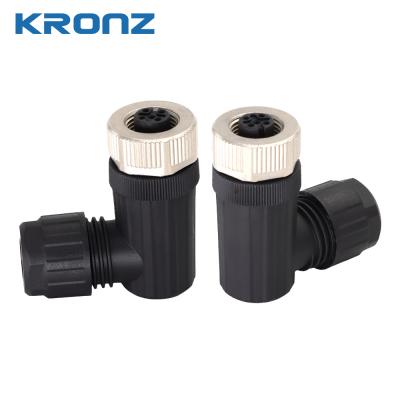

The M12 Female Circular Connector, Angled, 8-Pin is a robust, field-wireable solution designed for quick and flexible installations in harsh industrial environments. With its right-angle design, this connector is ideal for space-limited applications, while the field-assembly capability allows on-site wiring without the need for special tools.
Built to IP67 protection standards, it offers complete sealing against dust and water, ensuring reliable performance in outdoor and heavy-duty applications. The 8-pin A-coded configuration supports signal and low-power connections, making it perfect for use with sensors, actuators, and industrial control systems.
| Coding | A |
| Degree of protection | IP67 |
| Voltage | 30V |
| Contact resistance | ≤5mΩ |
| Mating cycles | >100 |
| Contact surface material | Brass, Gold-plated |
| Cable outlet | Angle |
| Connect | Screw Connection |
| Clamp matrix material | ABS, PBT/PA, Black |
| Ambient temperature | -25~+85℃ |
The KRONZ M12 Angled Cable Connector is a versatile product suitable for a wide range of applications due to its robust design and high-quality materials. This assembly connector is ideal for scenarios where reliable and efficient connectivity is essential in industrial environments.
Our M12 Connector product offers comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our dedicated support team is available to assist with any technical inquiries, troubleshooting, and product guidance.
Our M12 Connector is carefully packaged to ensure its safety during shipping. Each connector is enclosed in protective plastic casing and placed in sturdy cardboard boxes. We use reliable courier services with clear labeling and tracking information.
