China 3.49 Inch Bar Type TFT 172x640 MIPI/SPI Interface Driving IC AXS15231B 350c/D for sale

China 3.49 Inch Bar Type TFT 172x640 MIPI/SPI Interface Driving IC AXS15231B 350c/D for sale

3.49 Inch Bar Type TFT 172x640 MIPI/SPI Interface Driving IC AXS15231B 350c/D


Price	$8.9
MOQ	1000
Delivery Time	4~6weeks
Brand	HuaXin
Place of Origin	China
Certification	ISO14001/ ISO9001/IATF16949
Model Number	HX0349S001T001
Packaging Details	blister+foam box+bubble bag+inside carton+master carton
Payment Terms	T/T
Supply Ability	500K pcs per month

Product Details

Product Specification

Place of Origin	China	Display Technology	bar tft
Brightness	350c/d	Packaging Details	blister+foam box+bubble bag+inside carton+master carton
Model Number	HX0349S001T001	Supply Ability	500K pcs per month
resolution	172x640	Certification	ISO14001/ ISO9001/IATF16949
Brand Name	HuaXin	Payment Terms	T/T
Driving IC	AXS15231B	size	3.49 inch
Price	$8.9	Delivery Time	4~6weeks
Minimum Order Quantity	1000	name	bar type lcd
Interface	8bit/mipi/spi

Product Description

3.49 Inch Bar Type TFT 172x640 MIPI/SPI Interface Driving IC AXS15231B 350c/D

Product Specifications

Attribute	Value
Display Technology	Bar TFT
Name	Bar Type LCD
Size	3.49 inch
Resolution	172x640
Brightness	350c/d
Interface	8bit/MIPI/SPI
Driving IC	AXS15231B

Technical Parameters

Parameter	Value
Part No.	HX0349S001T001
Display Mode	3.49 inch bar type TFT display
Outline Size (mm)	24.989×88.692×2.16
AA Size (mm)	22.575×84
Display Dots	172x640
View Angle	All
Working Temperature	-20~70°C
Storage Temperature	-30~80°C

Product Images

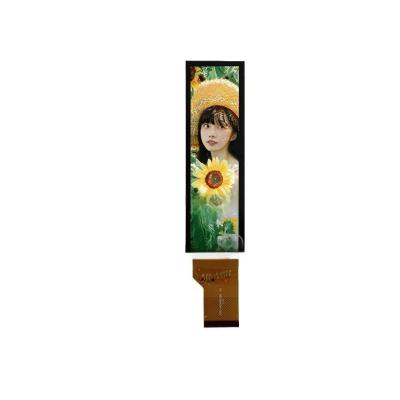

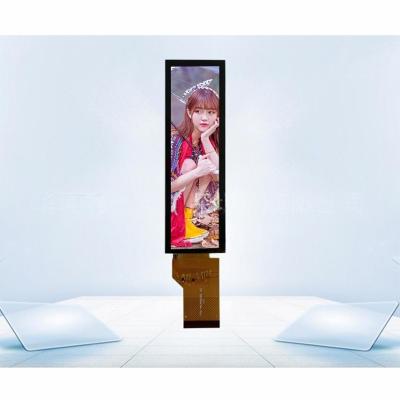

3.49 inch bar type TFT display front view

3.49 inch bar type TFT display side view

3.49 inch bar type TFT display technical details

TFT Product Knowledge

TFT substrate input flow chart

TFT structure diagram

Manufacturer Advantages

Cost-effective factory base located in inland city
Advanced equipment ensuring stable quality
Fully automated processes for efficiency and quality consistency
Experienced engineering team with 20+ years in LCD field
Custom product design capabilities

Certifications

ISO14001
ISO9001/IATF16949
SGS of LCD module

TFT Display Characteristics

Image Quality: High resolution, sharpness, and color accuracy
Response Time: Fast pixel switching capability
Viewing Angles: Wide viewing angles for clear visibility
Energy Efficiency: Lower power consumption than alternatives
Size Flexibility: Available in various sizes from small to large
Backlighting: Typically uses LED backlight systems
Applications: Suitable for diverse industrial and commercial uses

Product Applications

Car navigation systems & printers
Video communication & advertising displays
Automotive & medical equipment
Fitness equipment & handheld devices
Industrial controls & home appliances
