0.39
Inch
Monochrome
Micro
OLED
Display
High-resolution
1024×768
monochrome
micro
OLED
display
with
CVBS
interface
and
400cd/m²
brightness.
Ideal
for
scopes,
night
vision
imaging
devices,
and
applications
requiring
low
light
performance
with
high
contrast.
Key
Specifications
|
Attribute
|
Value
|
|
Display
Technology
|
AR
display
|
|
Size
|
0.39
inch
|
|
Resolution
|
1024×768
|
|
Interface
|
MIPI
|
|
View
Angle
|
All
|
|
Brightness
|
400
C/D
|
|
Testing
Board
|
CVBS
board
optional
(customization
available)
|
Technical
Parameters
|
Part
No.
|
HX039F8CSFS01
|
|
Display
Mode
|
0.39
inch
micro
OLED
with
board
|
|
AA
Size
(mm)
|
8.1352×6.1779
|
|
Display
Dots
|
1024×768
|
|
Overall
Dimensions
|
16.6×14.2
mm
|
Product
Images

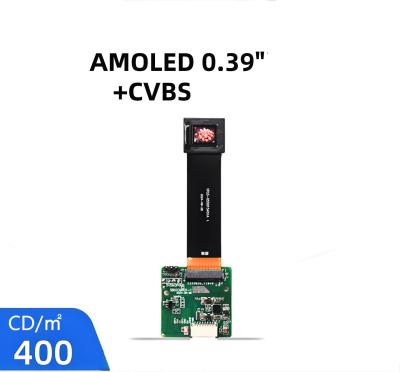

![Front view of 0.39 inch Micro OLED Display]()
Front
View
![Side view of 0.39 inch Micro OLED Display]()
Side
View

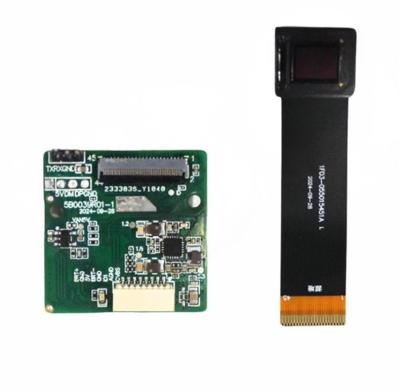

![Close-up of 0.39 inch Micro OLED Display]()
Close-up
View

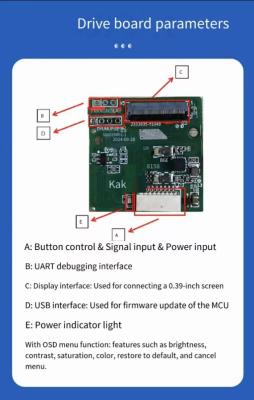

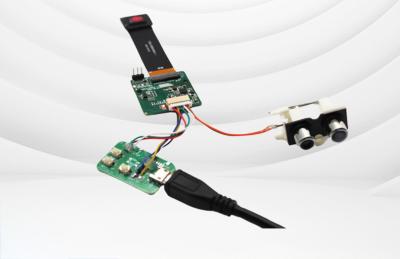

![Micro OLED Display with testing board]()
With
Testing
Board
![Technical view of Micro OLED Display]()
Technical
View

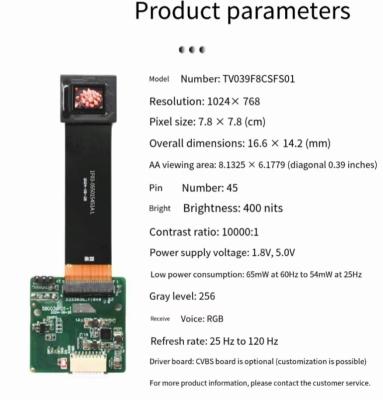

![Specifications of Micro OLED Display]()
Specifications
Pin
Definition
Micro
OLED
Technology
Overview
Key
Advantages
-
Ultra-High
Pixel
Density
(PPI)
-
Thin,
Lightweight,
and
compact
design
-
Superior
Quality
-
Lower
power
consumption
-
Wide
operating
Temperature
Range
-
High
brightness
&
Efficiency
(with
advanced
designs)
-
Manufacturing
&
Scalability
benefits
Considerations
-
Higher
production
costs
&
limited
supply
-
Limited
brightness
compared
to
Micro
LED
-
Restricted
view
angles
-
Shorter
lifespan
compared
to
micro
LED
-
Primarily
suitable
for
small
display
applications
Manufacturer
Advantages
-
Cost-effective
inland
factory
location
-
Advanced
equipment
for
stable
quality
-
Automated
processes
for
efficiency
and
consistency
-
20+
years
of
LCD
engineering
expertise
-
Custom
product
design
capabilities
Certifications
-
ISO14001
-
ISO9001/IATF16949
-
SGS
certified
LCD
modules
Applications
-
VR/AR/MR
headsets
-
Military
and
aerospace
systems
-
Medical
devices
and
microdisplays
-
Camera
and
electronic
viewfinders
-
Automotive
displays
-
Wearable
devices
and
smart
glasses
Technology
Comparison
|
Feature
|
Micro
OLED
|
Traditional
OLED
|
MicroLED
|
|
Substrate
|
Silicon
wafer
|
Glass/plastic
|
Sapphire/glass
|
|
PPI
|
3,000-5,000+
|
400-800
|
1,000+
|
|
Size
|
<1
inch
common
|
Smartphone/TV
sizes
|
Scalable
|
|
Power
Use
|
Low
|
Medium
|
Very
Low
|
|
Lifespan
|
Moderate
|
Moderate
|
Very
Long
|
|
Cost
|
High
|
Moderate
|
Very
high
|
Future
Outlook:
Micro
OLED
technology
is
expected
to
dominate
AR/VR
and
wearable
displays
due
to
its
unmatched
pixel
density,
with
major
industry
players
investing
heavily
in
its
development.
