| Price | $18.2 |
| MOQ | 1000 |
| Delivery Time | 4~6weeks |
| Brand | HuaXin |
| Place of Origin | China |
| Certification | ISO14001/ ISO9001/IATF16949 |
| Model Number | HX024VGV01 - B1729A |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Payment Terms | T/T |
| Supply Ability | 500K pcs per month |
| Place of Origin | China | Display Technology | AR display |
| Brightness | 800 C/D | Size | 2.4 inch |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton | View angle | all |
| Model Number | HX024VGV01 - B1729A | interface | SPI |
| Supply Ability | 500K pcs per month | Certification | ISO14001/ ISO9001/IATF16949 |
| Name | Micro oled display | Brand Name | HuaXin |
| Payment Terms | T/T | Price | $18.2 |
| Delivery Time | 4~6weeks | Minimum Order Quantity | 1000 |
| Resolution | 540*600 |
60Hz Refresh Rate | 800cd/m² High Brightness | 540×600 Resolution
| Display Technology | AR display |
| Size | 2.4 inch |
| Name | Micro OLED display |
| Resolution | 540×600 |
| Interface | SPI |
| View Angle | All |
| Brightness | 800 C/D |

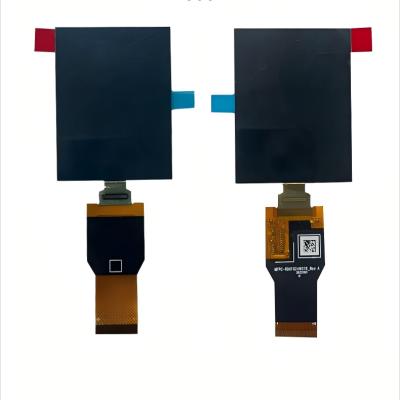

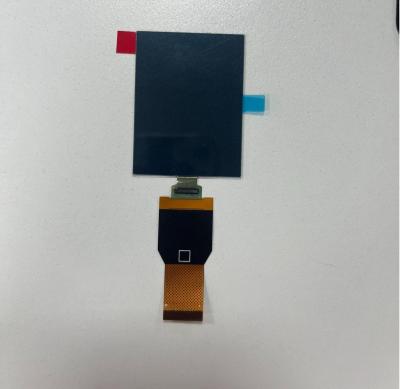

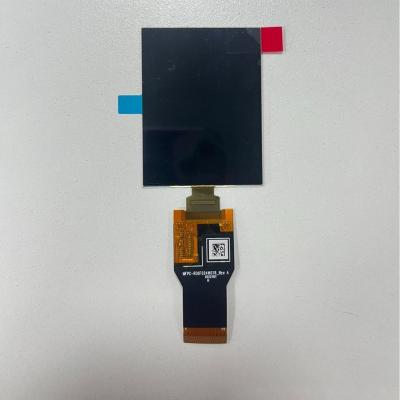

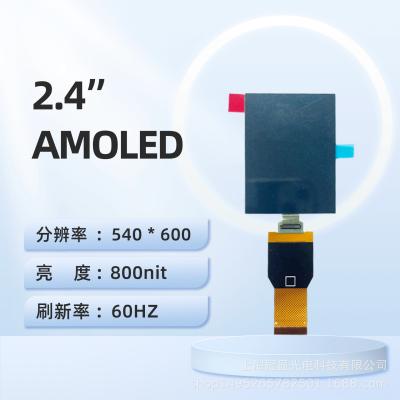

2.4-inch HD AMOLED display with 60Hz refresh rate, 800cd/m² high brightness, and 540×600 resolution. Suitable for smart wearables and handheld devices with wide color gamut display.

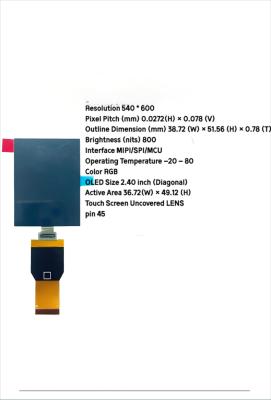

| Part No. | HX024VGV01 - B1729A |
| Display Mode | 2.4 inch OLED with board |
| Active Area | 36.72(W) × 49.12(H) mm |
| Outline Dimension | 38.72(W) × 51.56(H) × 0.78(T) mm |
| Display Dots | 540×600 |
| View Angle | All |
| Brightness | 800 C/D |
Key Advantages:
Limitations:
Certifications: ISO14001, ISO9001/IATF16949, SGS of LCD module
Huaxin
Technology
(Enshi)
Co.,
LTD
Hubei,
Enshi
|
Founded:
2009
High-tech
enterprise
specializing
in
R&D,
production
and
sales
of
LCD,
LCM,
TFT,
backlight,
and
OLED
products.
Register
capital:
20
million
|
Staff:
500+
(10%
R&D,
15%
QC)
| Annual Production Capacity | 2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousands/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousands/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousands/Day |
| Feature | Micro OLED | Traditional OLED | MicroLED |
|---|---|---|---|
| Substrate | Silicon wafer | Glass/plastic | Sapphire/glass |
| PPI | 3,000-5,000+ | 400-800 | 1,000+ |
| Size | <1 inch common | Smartphone/TV sizes | Scalable |
| Power Use | Low | Medium | Very Low |
| Lifespan | Moderate (OLED aging) | Moderate | Very Long |
| Cost | High | Moderate | Very High |
Expected to dominate AR/VR and wearable displays due to unmatched pixel density. Major companies like Sony, Samsung, BOE, and eMagin are investing heavily in this technology.
