2.4
Inch
OLED
Screen
Panel
128×64
SSD1309
Driver
31PIN
High-quality
PMOLED
display
with
128×64
resolution,
SSD1309
driver,
and
31PIN
interface.
Ideal
for
industrial
control
instruments
and
maker
development
projects.
Features
low-power
consumption
and
high-contrast
grayscale
display.
Key
Specifications
|
Attribute
|
Value
|
|
Display
Technology
|
PMOLED
screen
|
|
Resolution
|
128×64
|
|
Size
|
2.4
inch
|
|
Color
Options
|
Yellow/green/white/blue
|
|
Interface
|
8-bit68XX/80XXParallel4-wireSP
|
|
Driving
IC
|
SSD1309
|
|
Part
Number
|
HX242G-128064
|
Technical
Parameters
|
Active
Area
|
55.01×27.49mm
|
|
Module
Size
|
60.5×37.0×2.0mm
|
|
Operating
Temperature
|
-40°C
to
70°C
|
|
Pin
Quantity
|
30
PINS
|
Product
Images

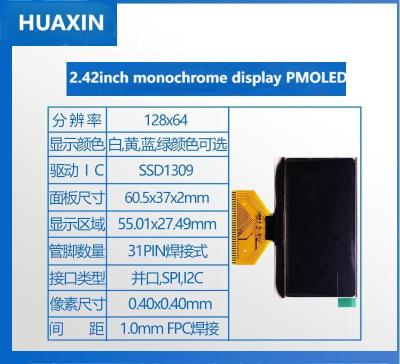

![2.4 inch OLED screen front view]()
Front
View

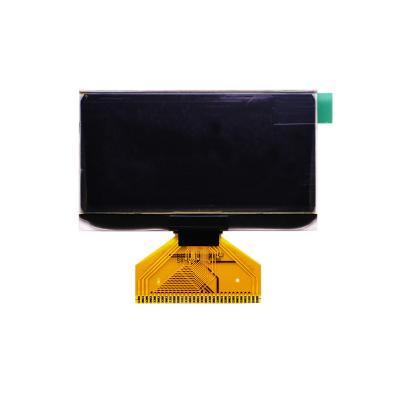

![2.4 inch OLED screen side view]()
Side
View

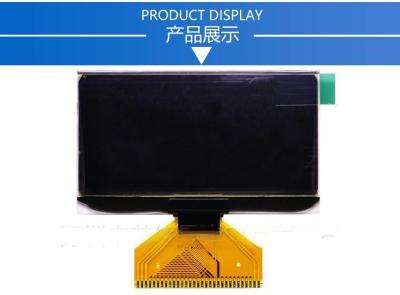

![2.4 inch OLED screen close-up]()
Close-up
View

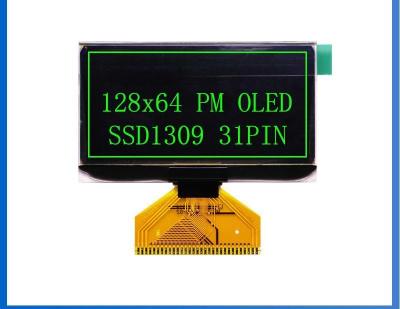

![2.4 inch OLED screen with ruler for scale]()
Size
Reference
![2.4 inch OLED screen connection interface]()
Connection
Interface
Technical
Documentation
![OLED screen technical drawing]()
Technical
Drawing
![OLED screen pin definition diagram]()
Pin
Definition
Diagram
OLED
Technology
Overview
Advantages:
-
Lighter
and
thinner
than
LCDs
-
High
contrast
ratio
-
Excellent
color
saturation
-
Lower
power
consumption
PMOLED
Characteristics:
-
Passive
matrix
addressing
scheme
-
High
contrast
and
color
saturation
without
backlight
-
Power
efficient
-
only
active
pixels
consume
energy
-
Thin
and
flexible
construction
-
Ideal
for
small
to
medium-sized
displays
Applications
-
Wearable
Devices
-
Portable
Audio
Players
-
Thermostats
and
Home
Automation
-
Car
Dashboards
and
Instrument
Clusters
-
Medical
Devices
-
Industrial
and
Professional
Equipment
Manufacturer
Information
Huaxin
Technology
(Enshi)
Co.,
LTD
Founded:
2009
|
Location:
Hubei,
Enshi
High
technology
enterprise
specializing
in
LCD,
LCM,
TFT,
backlight,
and
OLED
research,
development,
and
production.
Company
Advantages:
-
Cost-effective
inland
factory
location
-
Advanced
equipment
for
stable
quality
-
Automated
production
processes
-
20+
years
experience
in
LCD
field
-
Custom
design
capabilities
Certifications:
-
ISO14001
-
ISO9001/IATF16949
-
SGS
certified
LCD
modules
